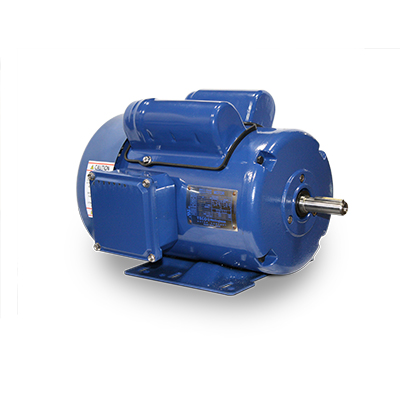

HVAC Single Phase ODP

Open Drip Proof, [SP/SPH]

Single Phase, 60 Hz; 1.15 Service Factor for 115V & 230V or 1.0 Service Factor for 208V
Capacitor Start, Capacitor Run
Class F Insulation
Automatic Reset Overload
Class B Temperature Rise
Designed for 40˚C Ambient Temperature
Designed for 3300 ft. Elevation
Bi-Directional Rotation
Rolled Steel Frame
Cast Aluminum Terminal Box
1045 Carbon Steel Shaft
Aluminum Die Cast Squirrel Cage Rotor Construction
Paint System: Phenolic Rust Proof Base Plus Lacquer Top Coat
Paint Color: Blue - Munsell 5 PB 3/8
Double Shielded Bearings Pre-Packed with Lithium Base Grease
No Terminals; Lead End Peel-Off Insulation
Grounding Terminal Inside Main Box
Stainless Steel Nameplate
Motors are UL Recognized for United States and Canada
